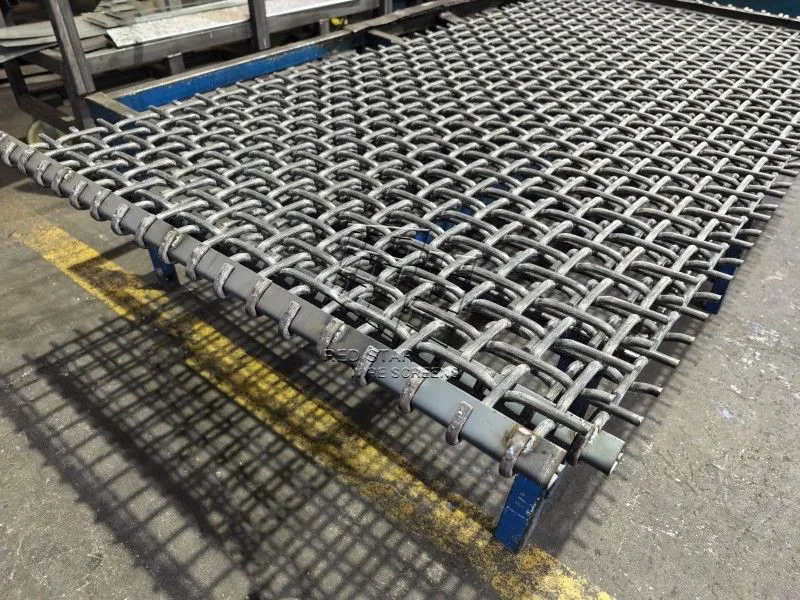

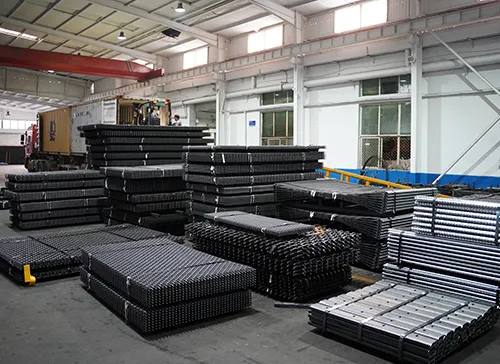

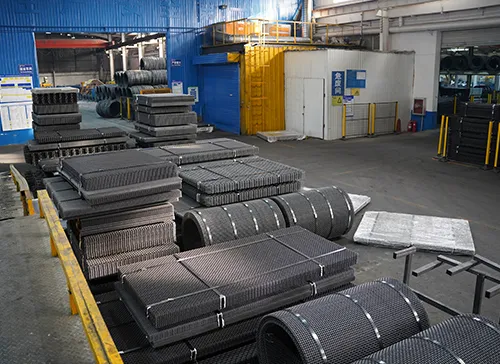

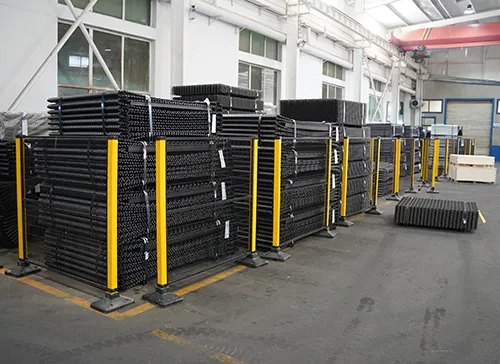

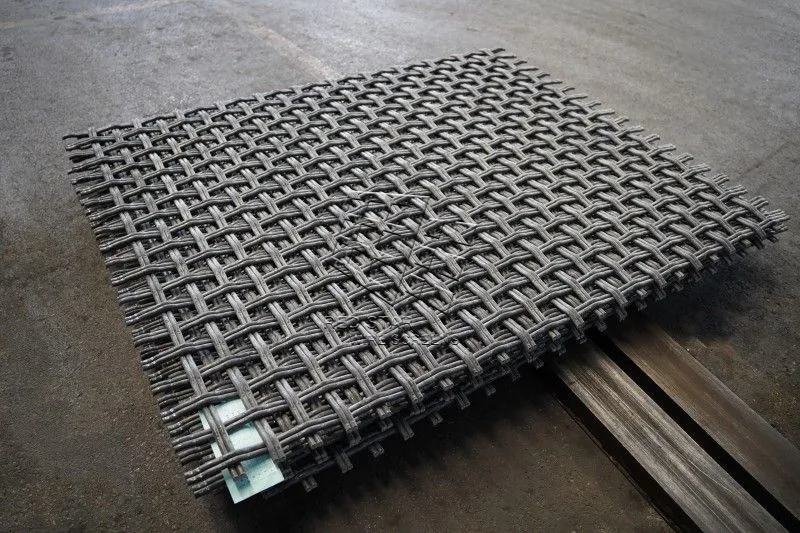

Metal Woven Wire Mesh Screen, also known as woven wire screen or woven wire mesh, is widely used in mining, aggregate processing, quarrying, asphalt mixing, and industrial screening applications. As a professional woven wire screen supplier, Red Star Wire Mesh provides high-performance solutions with precise aperture control, excellent wear resistance, and long service life for global B2B customers.
Explore the versatility of our Woven Wire Screen designs, which incorporate advanced woven wire mesh techniques to ensure optimal flow and separation. Whether you're dealing with coarse aggregates or fine powders, this Woven Wire Screen adapts seamlessly, providing consistent results that outperform standard alternatives.
Our Metal Woven Wire Mesh Screens are manufactured from high-quality steel wire through advanced weaving processes, ensuring consistent opening size, strong tensile strength, and reliable screening efficiency. Available in a wide range of wire diameters, mesh counts, and panel sizes, these woven wire screens are ideal for both dry and wet screening conditions.
We offer a wide range of wire materials so that each Woven Wire Screen can be perfectly matched to the material being processed and the working environment：
High Carbon Steel Woven Wire Mesh Screen
Spring Steel Woven Wire Screen
Stainless Steel Woven Wire Mesh Screen (304 / 316)
If you are unsure which material is most suitable for your Woven Wire Screen, our team can recommend a solution based on your material type, particle size and operating conditions.

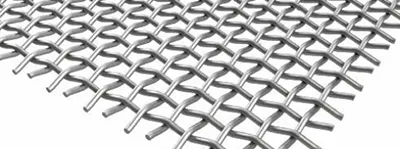

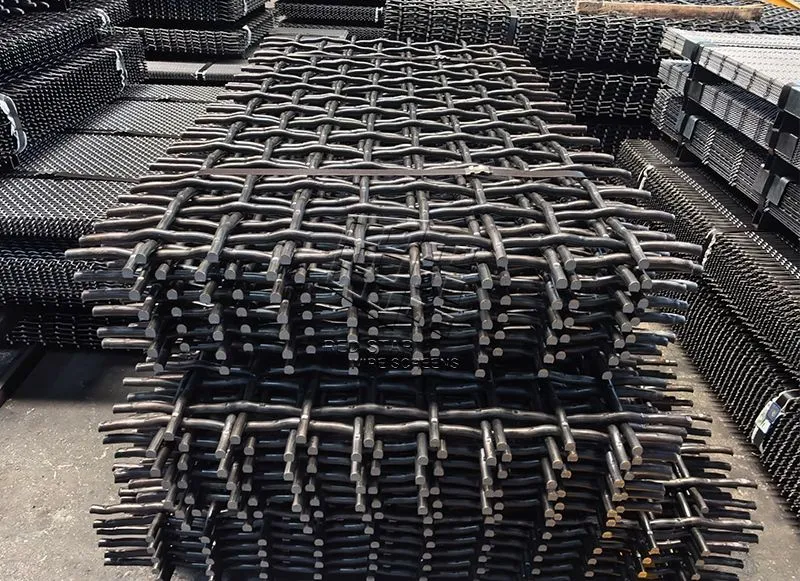

Double Crimped Woven Wire Screen

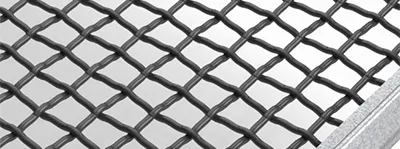

Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen

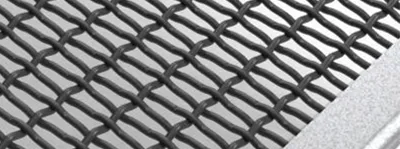

Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen

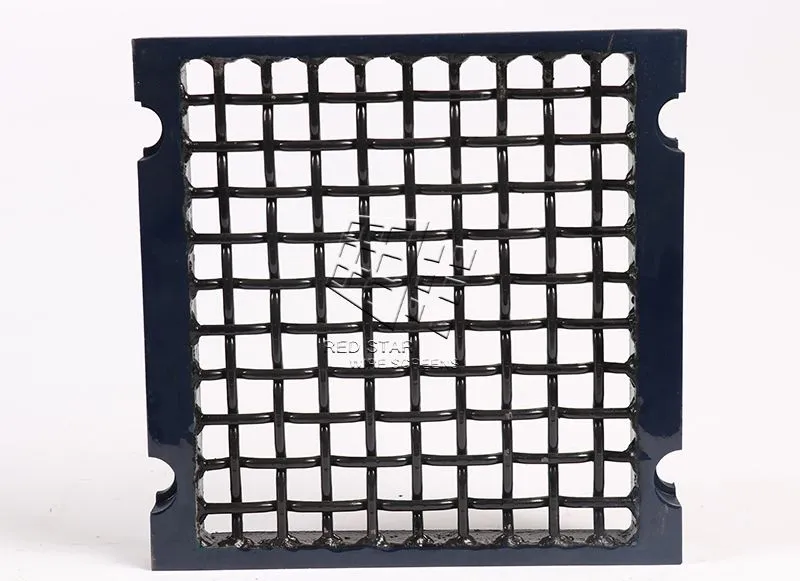

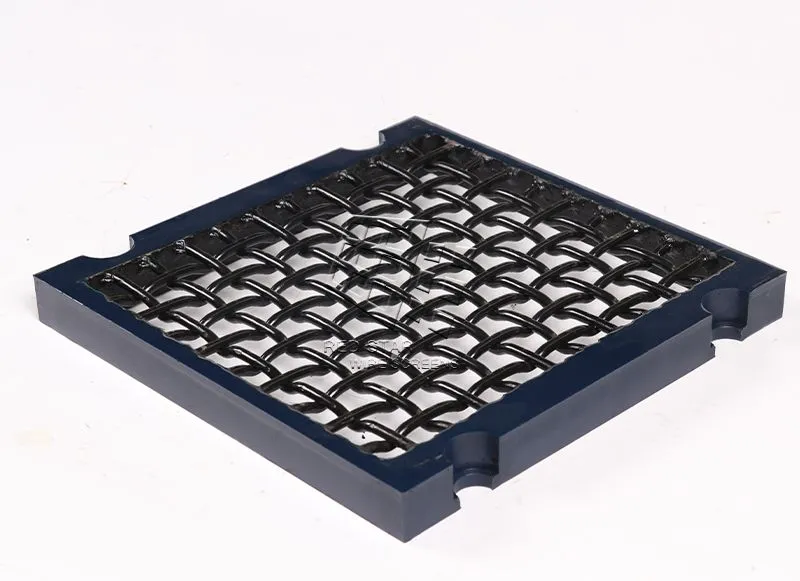

Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9

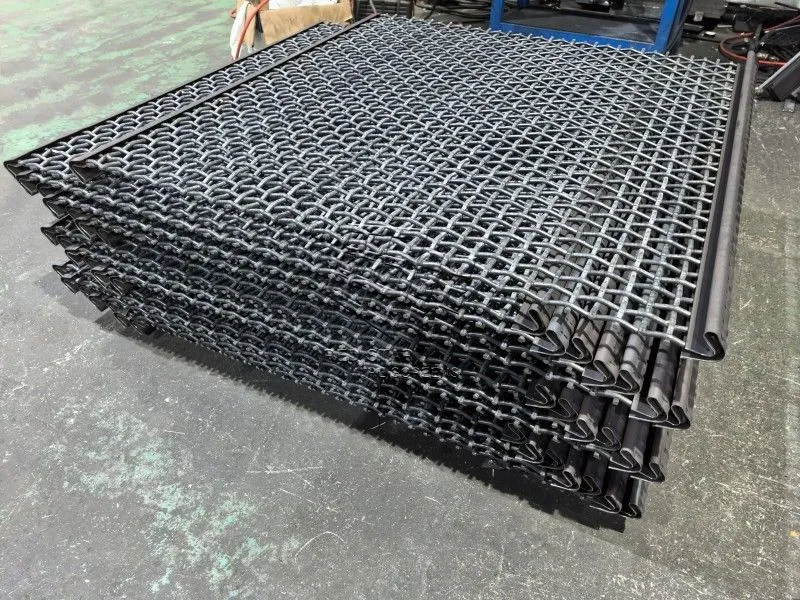

Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Red Star Wire Mesh offers standard and custom woven wire screen sizes to meet different screening capacities and equipment requirements.
Wire Diameter: 0.4 mm – 25 mm
Aperture Size: 1 mm – 150 mm
Panel Size: 1 m × 2 m, 1.2 m × 2.4 m, Custom Sizes
Mesh Count: Customized according to screening capacity

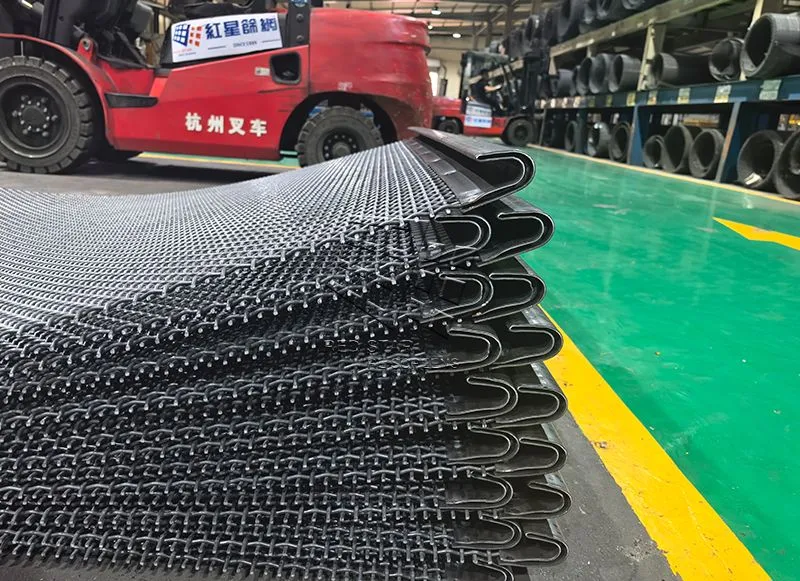

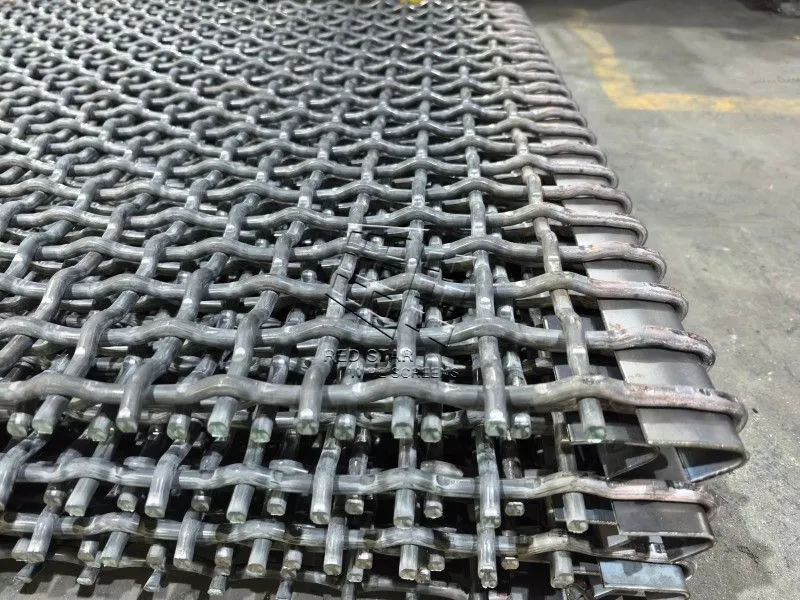

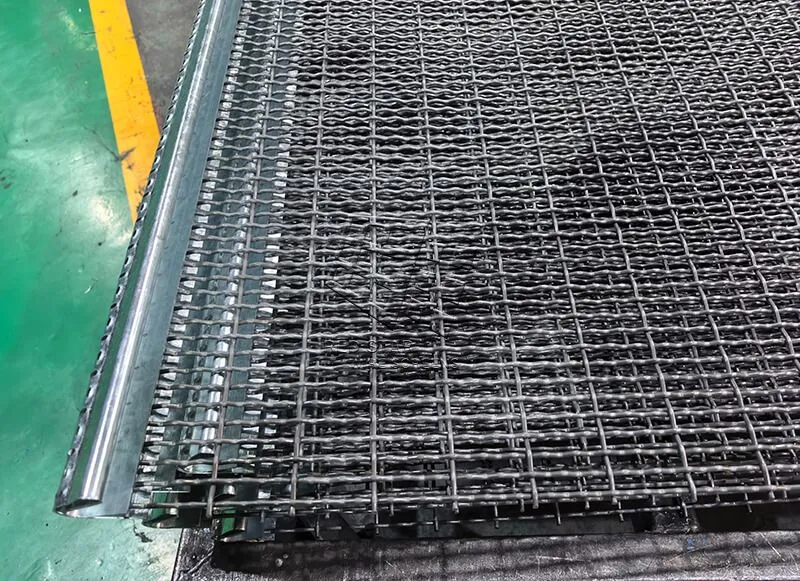

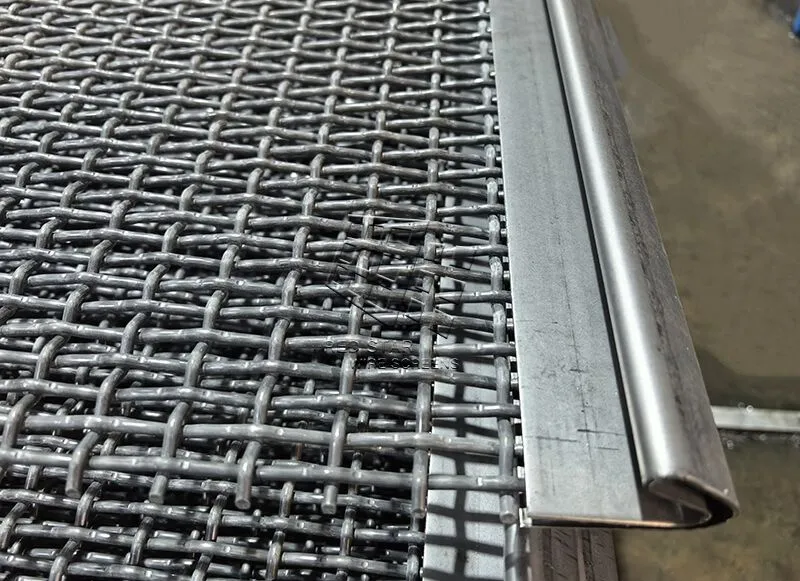

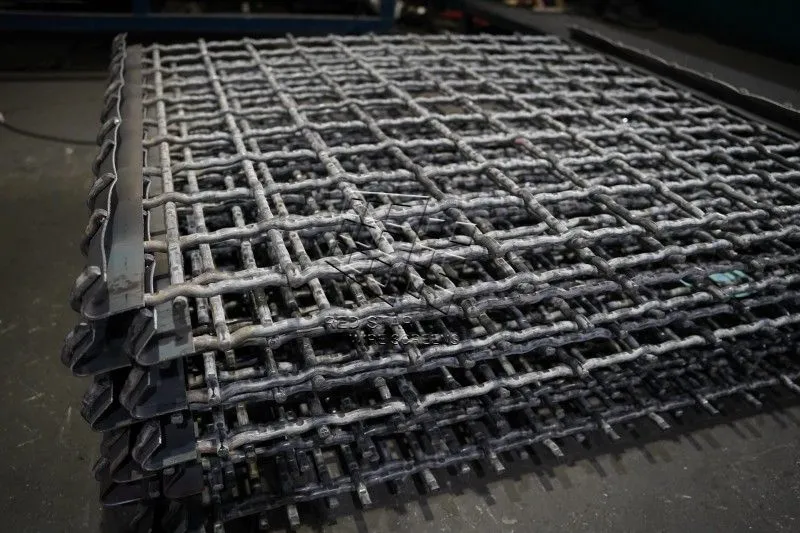

Edge Treatment: Hooked edge, flat edge, reinforced edge
The versatility of our products allows them to perform across a wide spectrum of sectors：
Mining,Aggregate Screening and Ore Processing：
Our mining screen mesh handles primary and secondary crushing, scalping, and sizing of aggregates, coal, and ores with exceptional efficiency.
Coal, Sand, and Gravel Separation：
Designed for high-frequency vibratory machines, our screens maintain throughput and accuracy even in wet conditions.
Architecture & Design:
Beyond industrial use, our aesthetically pleasing metal meshes serve as modern architectural wire mesh for facades, balustrades, and sunshades.
Agriculture:
Used for grain cleaning, seed sorting, and sifting bulk materials.

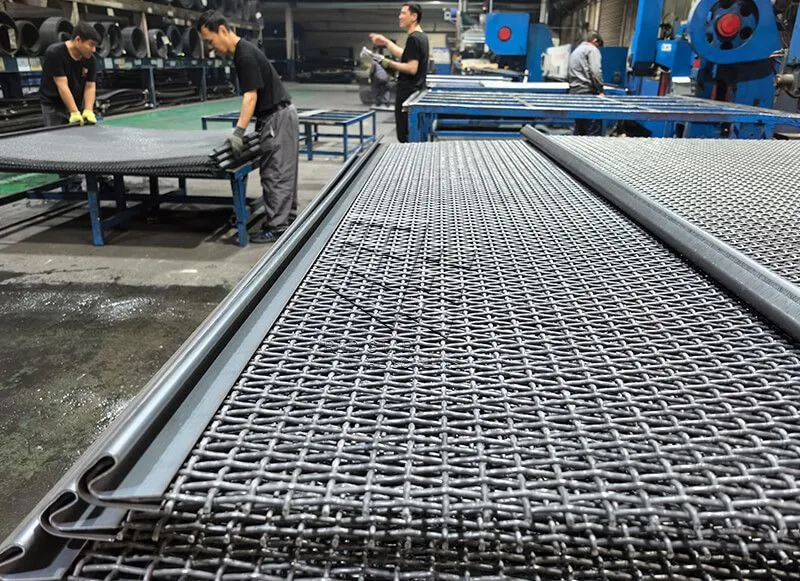

As a Woven Wire Screen manufacturer, we control every step of the production process. We do not just sell screens,we provide solutions. When you request a quote, we analyze your operating conditions to recommend the best material and weave.
Material Testing: Tensile strength and chemical composition tests ensure raw material quality.
Dimensional Accuracy: Strict checks on roll width, length, and aperture tolerance.
OEM Services: We manufacture custom-sized panels and hooks to fit all major vibrating screen models, including Deister, Simplicity, and Nettervib machines.

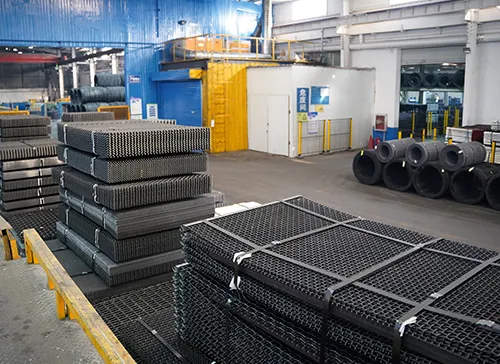

Red Star Wire Mesh Manufacturing Co., Ltd. was established in 1989 and has over 36 years of experience in the mining screen mesh industry. The factory covers an area of 58,730 square meters with five major workshops, including steel wire treatment, woven screen, polyurethane screen, self-cleaning screen, and grill screen workshops.

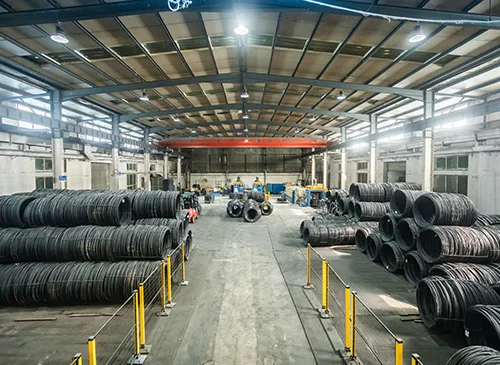

Equipped with more than 260 sets of advanced production equipment, Red Star Wire Mesh has strong large-scale manufacturing and diversified production capabilities. The company operates a 4,000 square meter R&D center for wear-resistant materials and holds 18 new product patents.
As a drafting unit for China mining anti-blocking self-cleaning screen standards and asphalt mixing equipment wire screen standards, Red Star has a strong industry influence. The company is ISO9001, ISO14001, and ISO45001 certified, exporting woven wire mesh screens to more than 70 countries worldwide.
To better serve international customers, Red Star Wire Mesh established an overseas warehouse in Melbourne, Australia, and acquired Karcher Siebtechnik in Germany. This ensures faster delivery, stable supply, and professional technical support for customers in North America, Europe, Australia, Africa, and Southeast Asia.

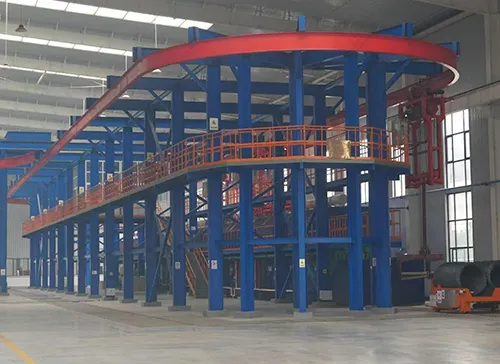

Precision Acid Descaling

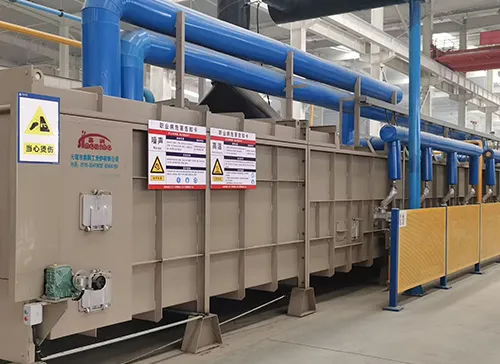

Isothermal Patenting / Lead Bath Quenching

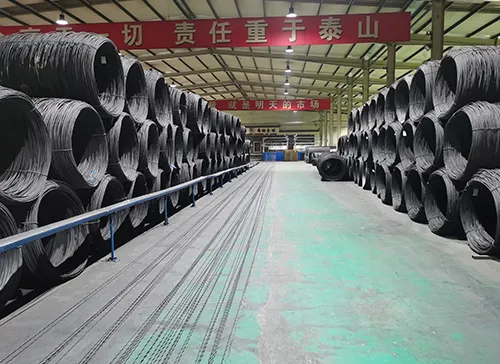

Patented Wire Rod - Core Raw Material Certification

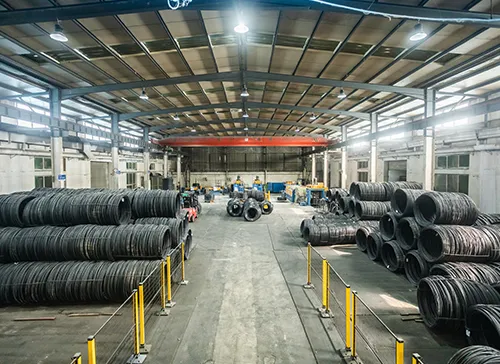

Multi-pass Precision Cold Drawing

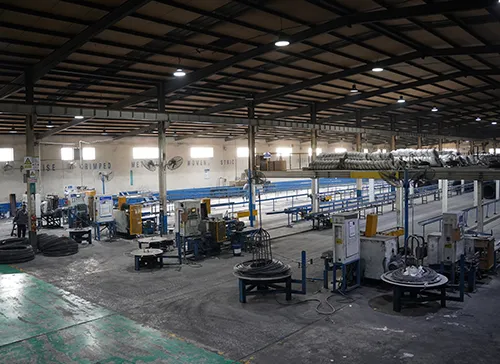

Fully Servo-controlled Knurling/Deformation

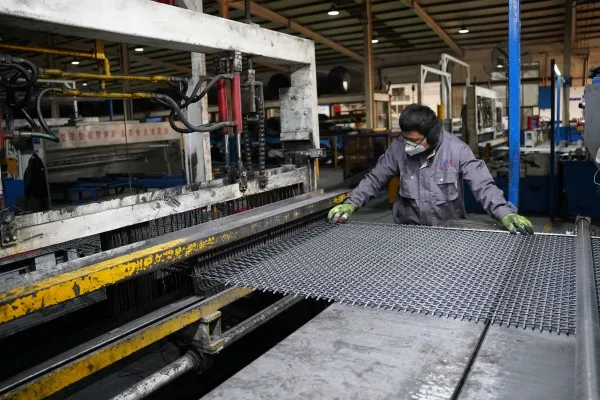

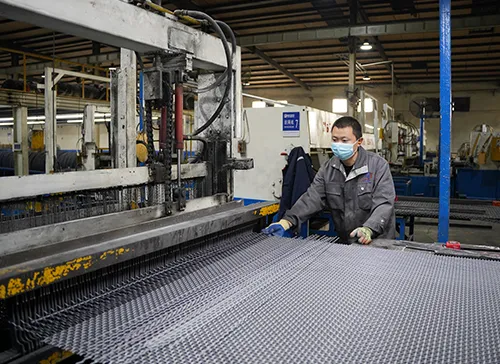

High-Speed Precision Weaving

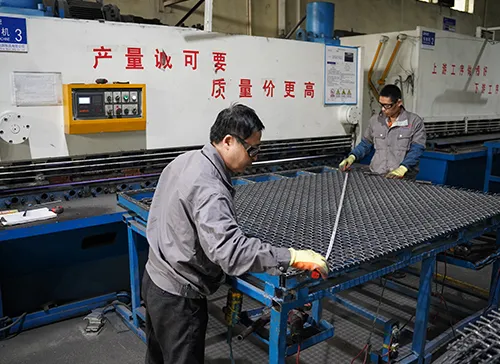

High-Precision Hydraulic Cutting

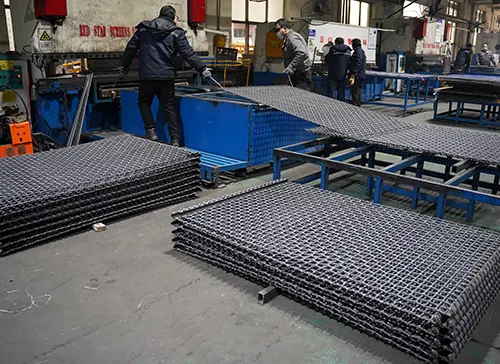

Customized Forming & Reinforcement

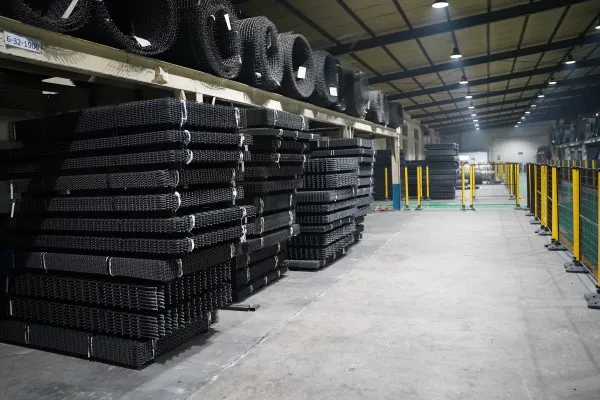

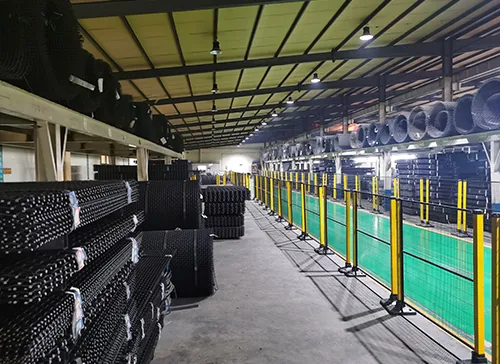

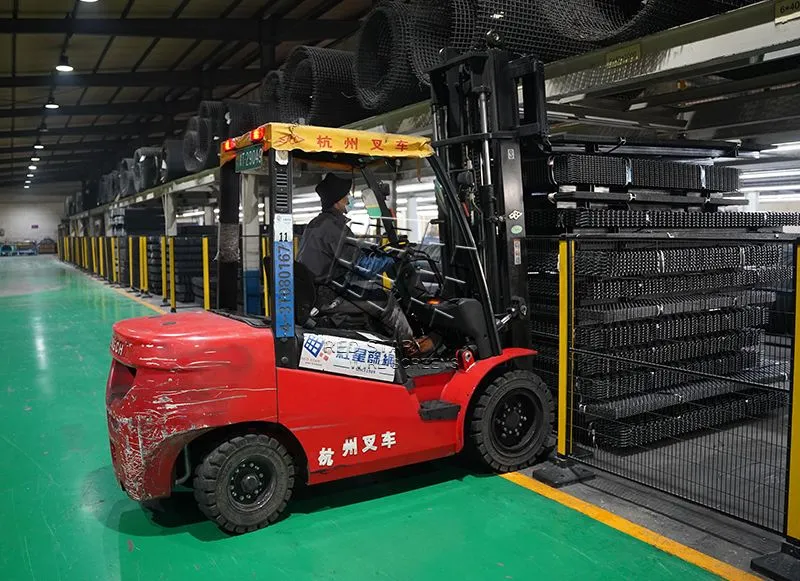

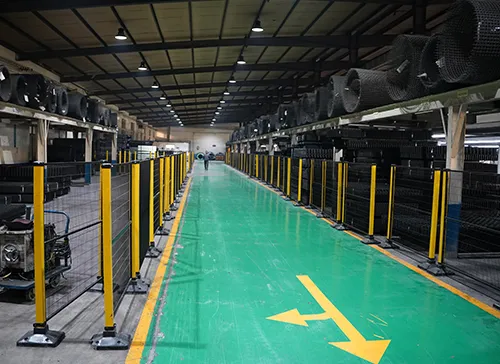

Final Inspection & Traceable Warehousing
We collaborate with steel mills to customize specialized wire rods with an optimized carbon and manganese content ratio, resulting in wire rods with superior initial performance compared to other screen manufacturers.
The wire rods undergo pickling and lead-bath quenching heat treatments, increasing their hardness and area reduction, significantly enhancing the tensile and abrasion resistance of the screen mesh.
We possess thousands of molds and employ professional mold repair and calibration engineers to ensure the precision of the mesh openings.
Hongxing's screen mesh deviation control exceeds international standards. Wire diameter deviation is controlled within 0.03mm, Screen mesh aperture deviation is controlled within 3%, Screen mesh diagonal deviation is controlled within 10mm, Length deviation is controlled within 3mm, and Width deviation is controlled within 5mm.
Hongxing holds 38 invention and utility patents and continuously optimizes its processes to provide customers with even higher-quality screen mesh products.
Direct Metal Woven Wire Mesh Screens manufacturer with competitive factory price
Custom woven wire mesh screen solutions for OEM projects
Strict quality control from raw material to finished product
Fast response and reliable international logistics
Trusted by mining and aggregate companies worldwide
Looking for a reliable Metal Woven Wire Mesh Screen supplier or custom woven wire screen solution? Contact Red Star Wire Mesh today to receive technical support, drawings, and competitive pricing for your project.
Q: What is the difference between High Carbon and Stainless Steel Woven Wire Screen?
A: High Carbon Steel offers higher tensile strength and is more cost-effective for dry, abrasive materials. Stainless Steel (SS 304/316) is superior for wet environments or corrosive materials, offering longer life in acidic or humid conditions.
Q: Can I get a specific hook design for my vibrating machine?
A: Yes. We supply hooked edge screens ready for installation. Please provide your machine model or the drawing of the required hook type.
Q: How do I prevent clogging in fine mesh applications?
A: For fine materials that tend to plug, we recommend our anti-clogging weave options or our range of polyurethane screens, which offer excellent self-cleaning properties.
Enhance your processing efficiency with a premium Woven Wire Screen from Red Star Wire Mesh.We are committed to providing durable products, competitive pricing, and expert technical support.
This is a simpler and more stable weaving method with lower cost, which has been widely used by customers.
This is a simpler and more stable weaving method with lower cost, which has been widely used by customers.
The sieve holes are uniform and regular in size, which can accurately classify the materials in terms of particle size.
It can be applied to a variety of materials such as powder, granules, viscous material, etc., no matter dry powder or wet powder, it can be effectively screened.
Square hole screen is very suitable for screening long and thin granular materials.
The screening efficiency of square hole screen is affected by the wire diameter. The finer the wire diameter, the larger the opening area and the higher the material yield.
If no yield is required, a coarser wire diameter can be selected to extend the life of the screen.
Wire diameter, aperture and material can be adjusted according to customers' requirements, supporting customized products.
Mesh size range: 1mm-150mm
Wire diameter range: 0.4mm-25mm
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
We collaborate with steel mills to customize specialized wire rods with an optimized carbon and manganese content ratio, resulting in wire rods with superior initial performance compared to other screen manufacturers.
The wire rods undergo pickling and lead-bath quenching heat treatments, increasing their hardness and area reduction, significantly enhancing the tensile and abrasion resistance of the screen mesh.
We possess thousands of molds and employ professional mold repair and calibration engineers to ensure the precision of the mesh openings.
Hongxing's screen mesh deviation control exceeds international standards. Wire diameter deviation is controlled within 0.03mm, Screen mesh aperture deviation is controlled within 3%, Screen mesh diagonal deviation is controlled within 10mm, Length deviation is controlled within 3mm, and Width deviation is controlled within 5mm.
Hongxing holds 38 invention and utility patents and continuously optimizes its processes to provide customers with even higher-quality screen mesh products.
Using special locking weaving process, so that the mesh filaments are locked with each other, the knot is more solid, high structural stability, able to withstand large material impact and friction, not easy to deformation, loosening, broken wire and other phenomena, in the harsh working environment can still maintain good screening performance, prolonging the service life of the screen mesh.
The installation process is relatively simple and convenient, easy to maintain.
Wire diameter, aperture and material can be adjusted according to customers' requirements, supporting customization.
Mesh hole range: 1mm-140mm
Wire diameter range: 0.4mm-14mm
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
Compared with RS-1 type, the woven screen with flat top structure can better disperse the stress when it is impacted and pressurized by materials, keep the overall shape of the screen stable and not easy to appear local deformation, which prolongs the service life of the screen.
Better fluidity of materials on the screen surface, not easy to pile up and clog, especially suitable for dealing with sticky or high humidity materials.
Easy to clean and maintain.
Wire diameter, aperture and material can be adjusted according to customers' requirements, supporting customization.
Mesh size range: 1mm-150mm
Wire diameter range: 0.4mm-25mm
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
The steel wire undergoes rigorous pre-bending to create a corrugated braid structure, enhancing mesh rigidity and tensile strength. This structure is suitable for high-vibration, high-load screening applications (such as mining and coal washing plants).
Compared to conventional square-hole screens, the wire diameter-to-hole diameter ratio is larger, further improving deformation resistance and service life.
The wave-isolating structure expands the effective screening area, increasing material throughput and making it suitable for high-flow applications.
The corrugated structure reduces material adhesion, effectively minimizing the risk of clogging and making it suitable for wet, sticky materials.
It provides both vibration isolation and noise reduction, minimizing equipment wear.
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
Double filament weaving makes the screen mesh relatively large aperture, more compact structure and more uniform mesh.
Increase the overall strength and stability of the screen mesh, not easy to break and deformation.
Withstand the impact of larger materials and friction performance is improved.
From the perspective of long-term operation, the comprehensive benefit is higher.
Mesh size range: 1mm-150mm
Wire diameter range: 0.4mm-25mm
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
It is especially suitable for screening materials with irregular shapes.
The long-hole woven screen can screen materials in a directional manner, especially for long, fibrous materials.
The long-hole design helps minimize buildup and clogging in the screen holes, especially for wet, sticky, lumpy materials.
Long-hole woven screen fabric has good adaptability to many types of materials.
Mesh size range: 0.7*2.1mm-28*120mm
Wire diameter range: 0.4mm-8mm
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
Double Crimped Woven Wire Screen
Lock Crimped Woven Wire Screen
Flat Top Crimped Woven Wire Screen
Intermediate Crimped Woven Wire screen
Double Strand Crimped Woven Wire screen
Plain Rectangular Woven Wire Screen
Intermediate Crimped Rectangular Woven Wire screen
Woven Wire screen with Polyurethane Frame
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Both Hooks Down
Both Hooks Up
One Hook Up and One Hook Down
Precision Acid Descaling
Isothermal Patenting / Lead Bath Quenching
Patented Wire Rod - Core Raw Material Certification
Multi-pass Precision Cold Drawing
Fully Servo-controlled Knurling/Deformation
High-Speed Precision Weaving
High-Precision Hydraulic Cutting
Customized Forming & Reinforcement
Final Inspection & Traceable Warehousing
Video Name
South African Customer Visit
Japanese Customer Visit
Australian Customer Visit
American Customer Visit
Russian Customer Visit
German Customer Visit
Our experienced staff is available to discuss your needs and to help determine which product is best for your particular application.
Request a quote or call us at +86 13253247773
Red Star Wire Mesh Manufacturing Co., Ltd. is not an authorized repair facility nor does it have an affiliation with the original equipment manufacturers (OEM) listed above. These terms are used for identification purposes only and are not intended to indicate affiliation with or approval of Red Star Wire Mesh Manufacturing Co., Ltd. , Inc. by the named OEM, respectively. All parts are manufactured by, for and warranted by Red Star Wire Mesh Manufacturing Co., Ltd. are not manufactured by, purchased from or warranted by the OEM.

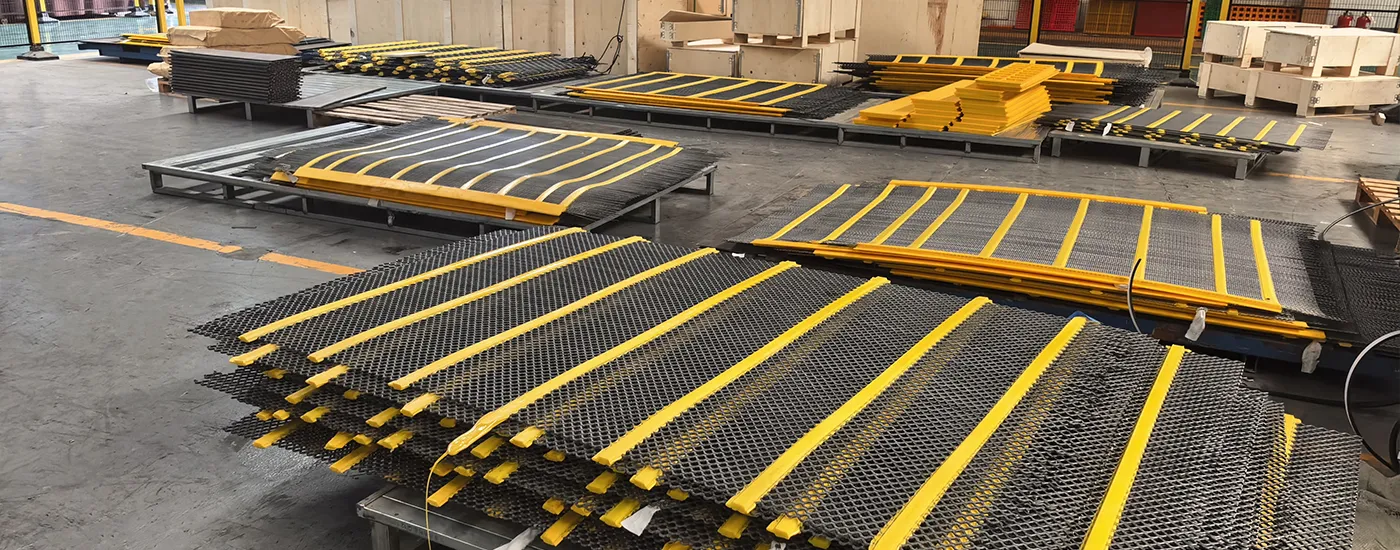

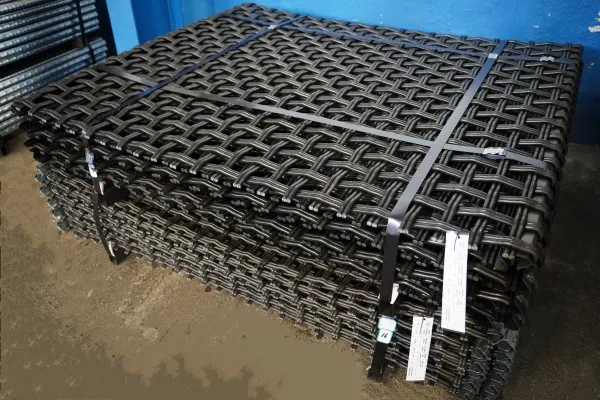

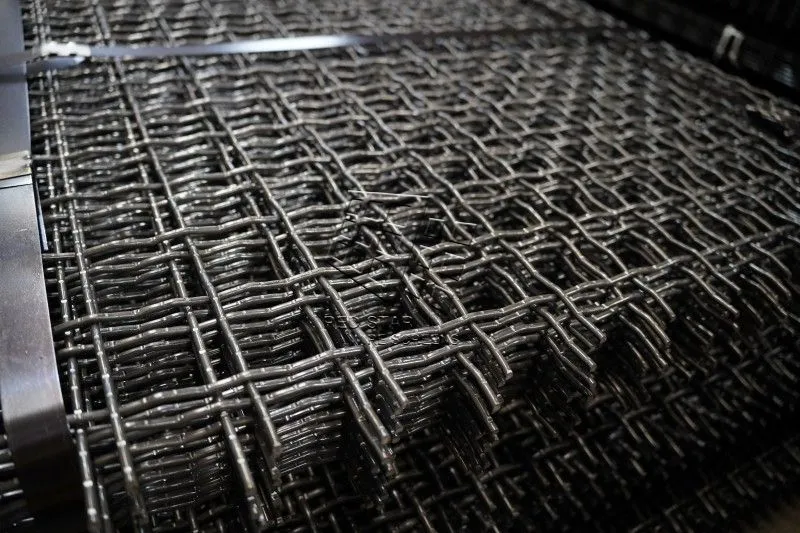

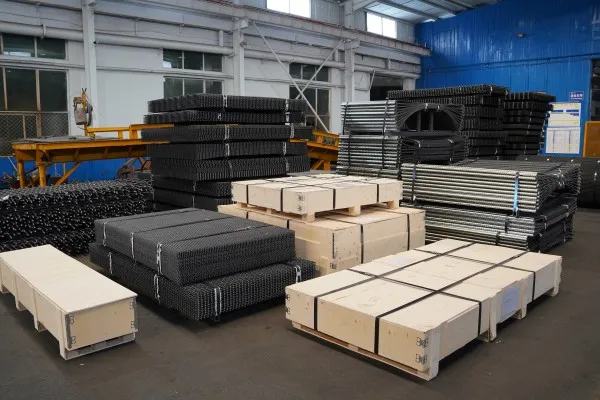

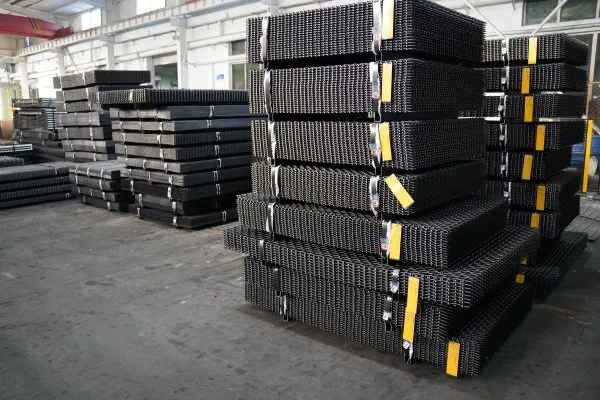

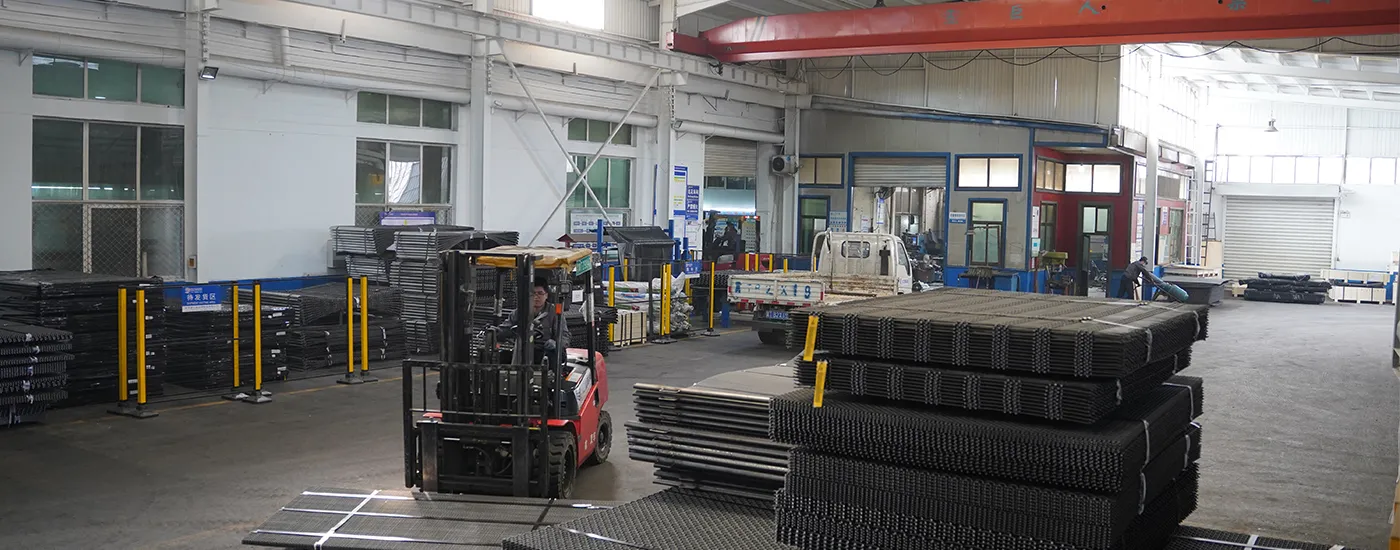

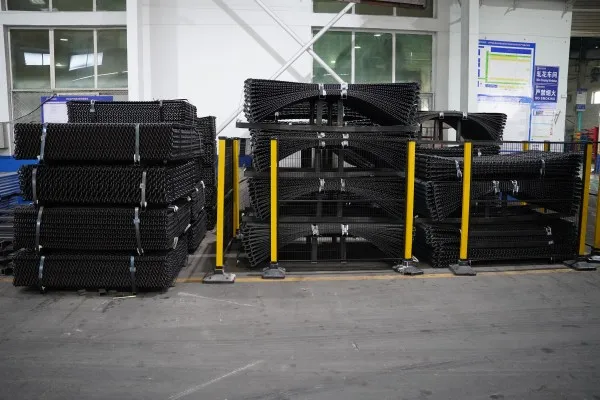

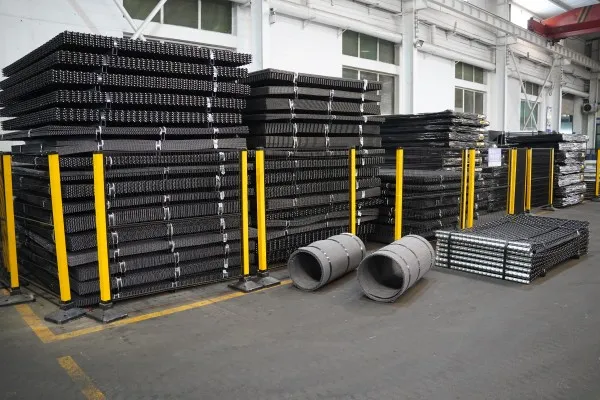

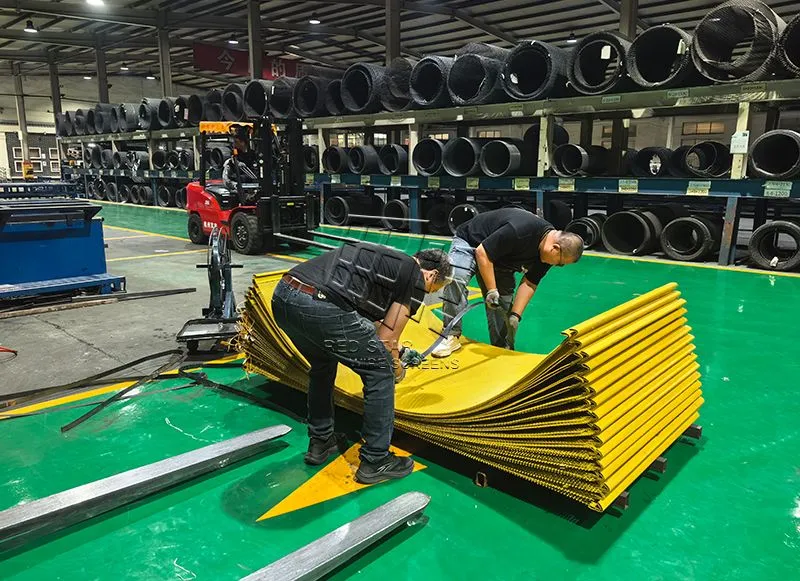

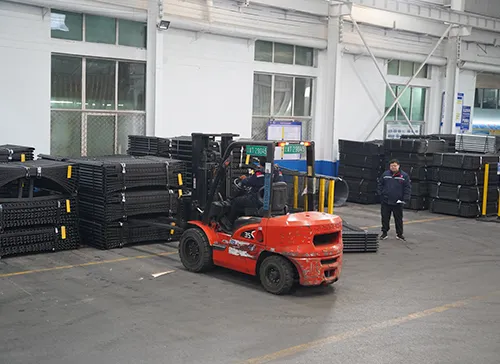

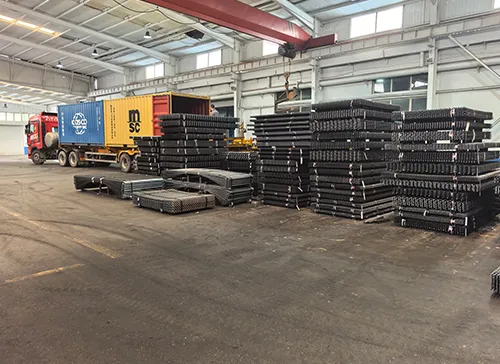

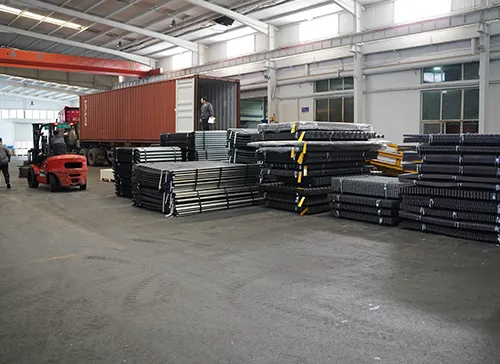

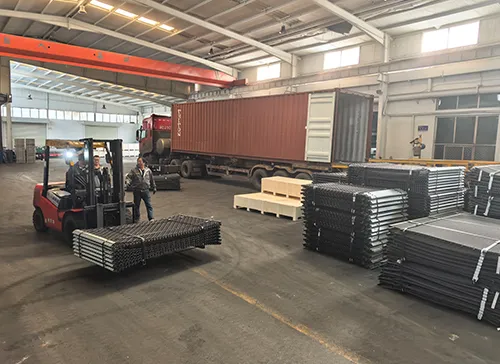

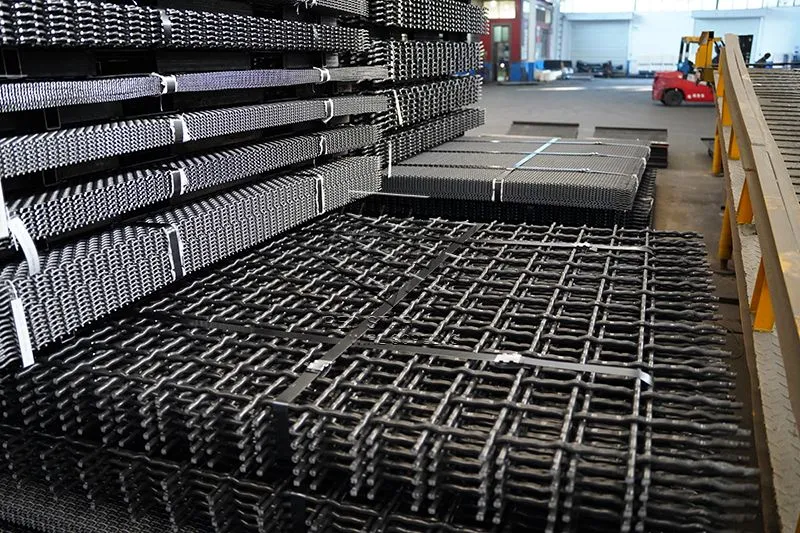

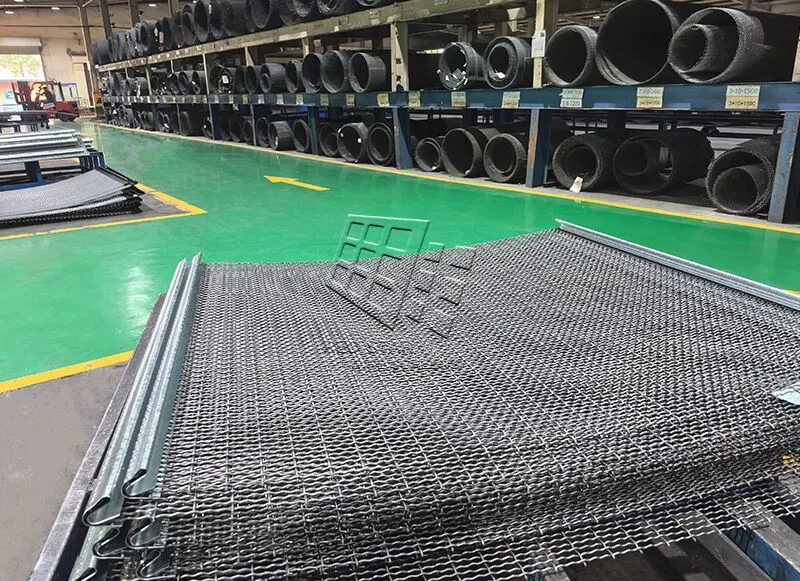

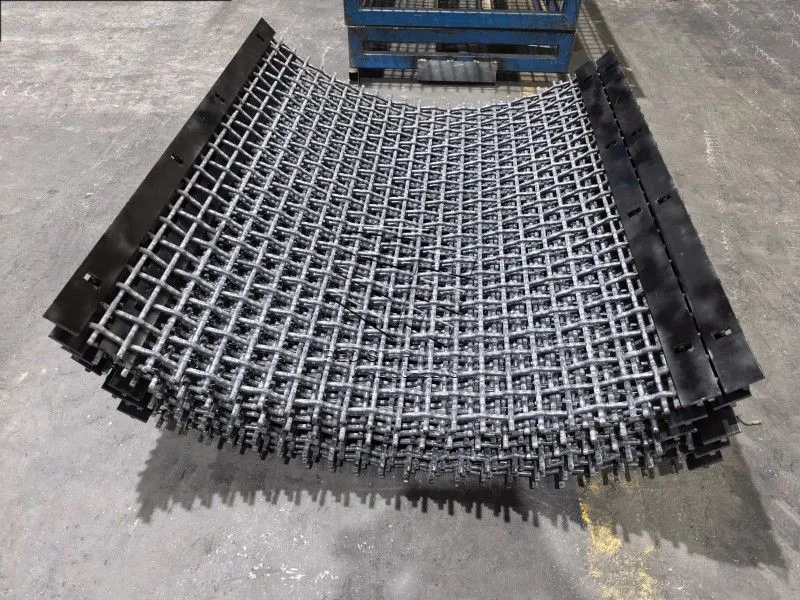

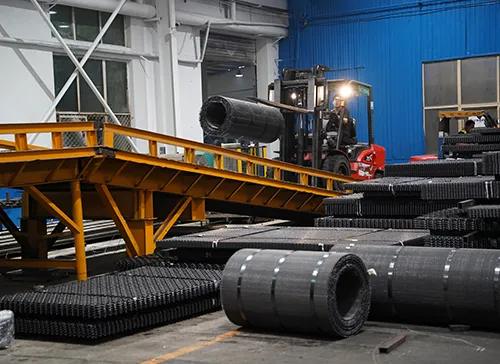

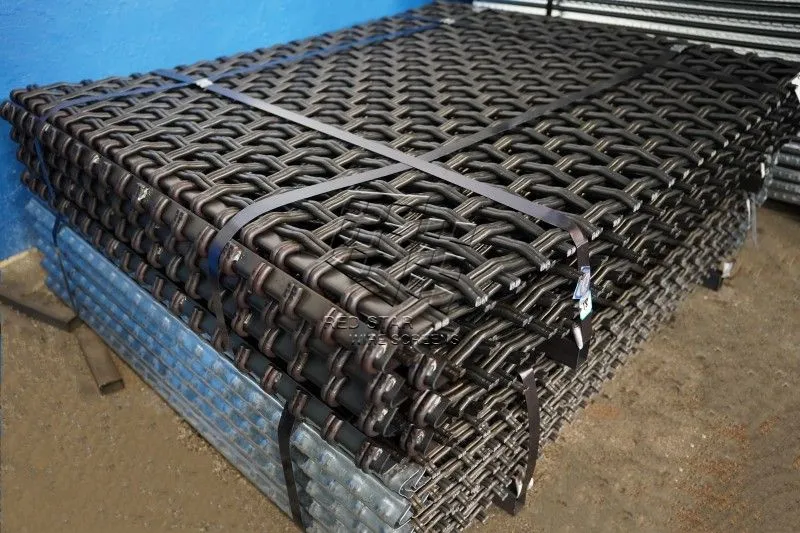

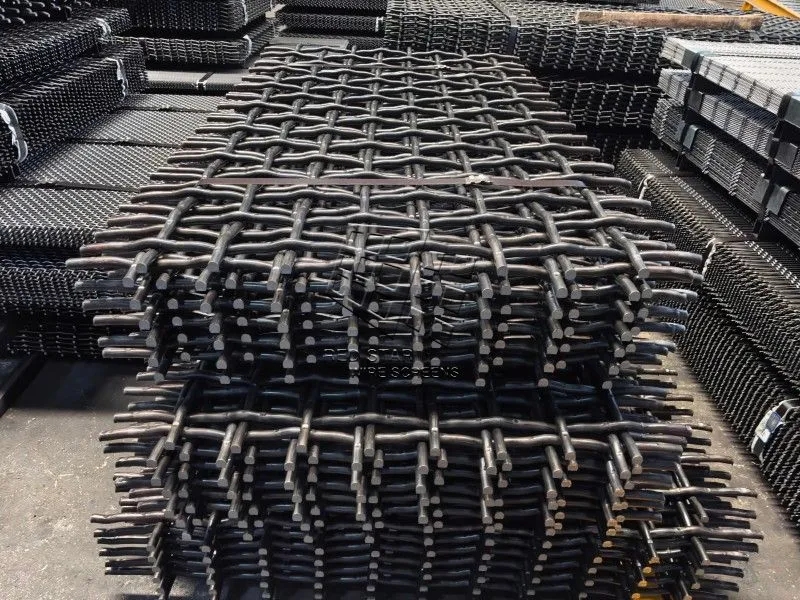

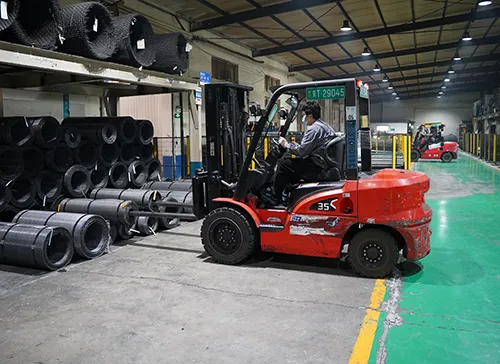

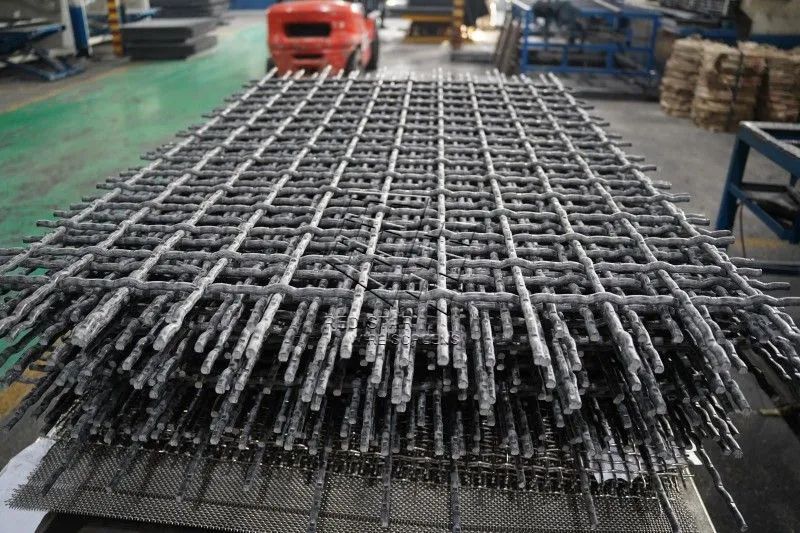

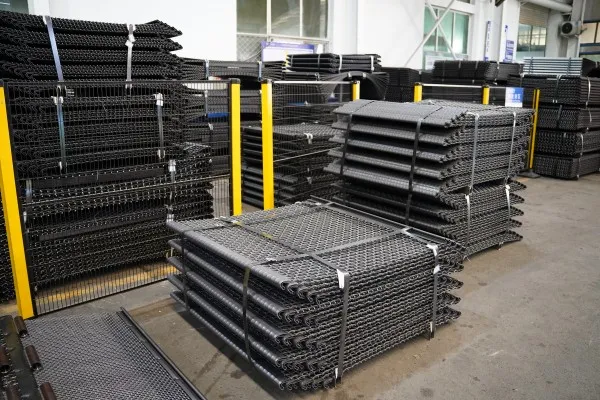

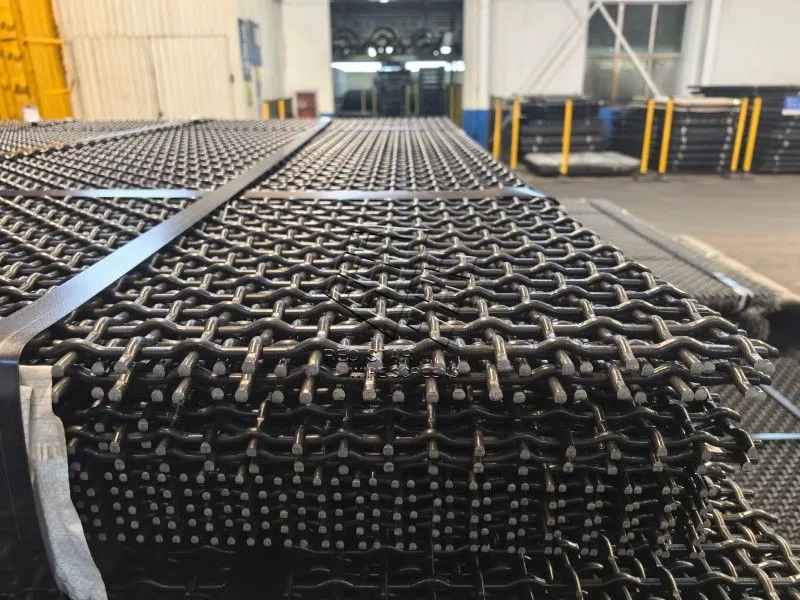

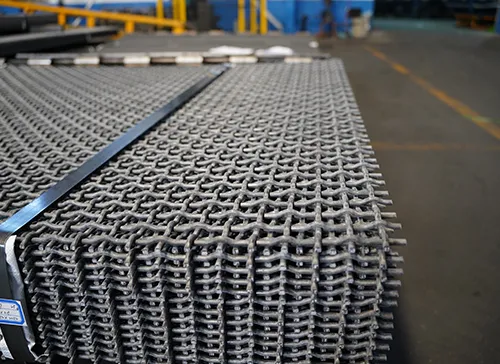

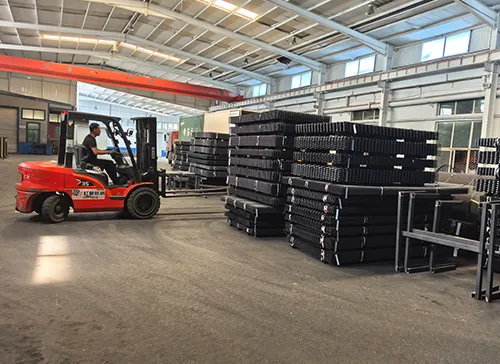

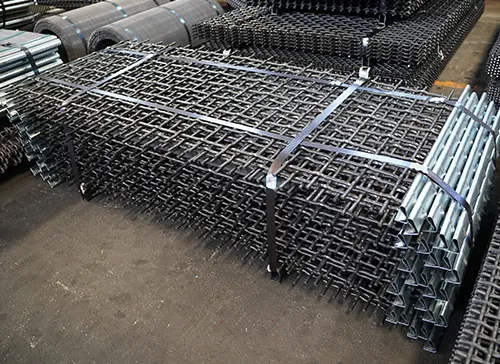

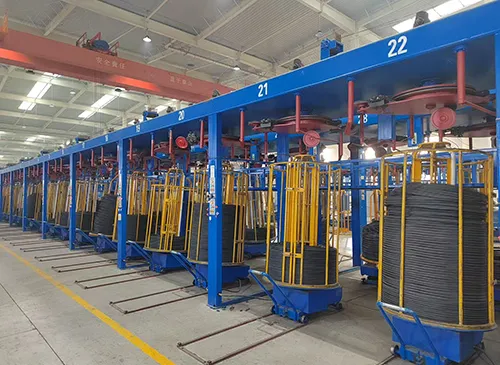

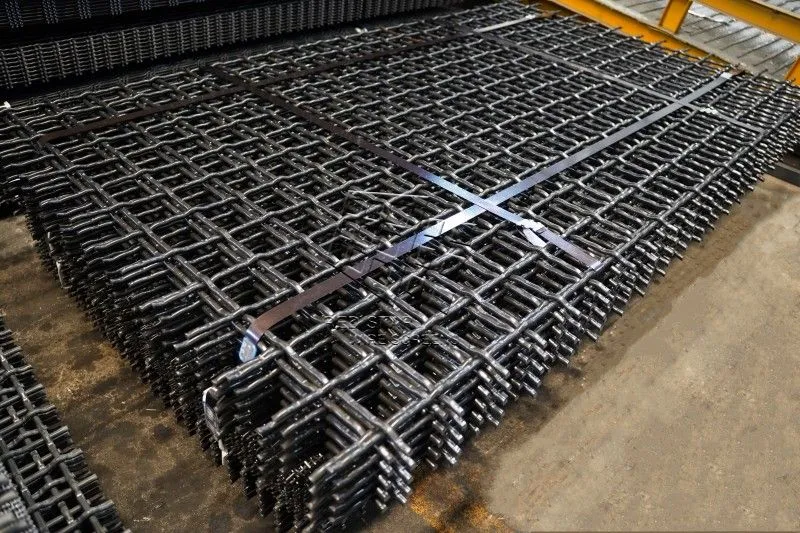

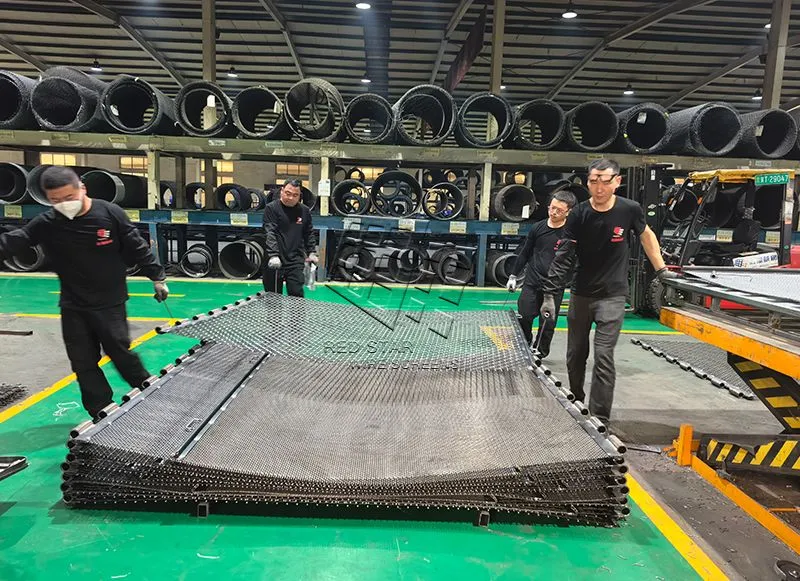

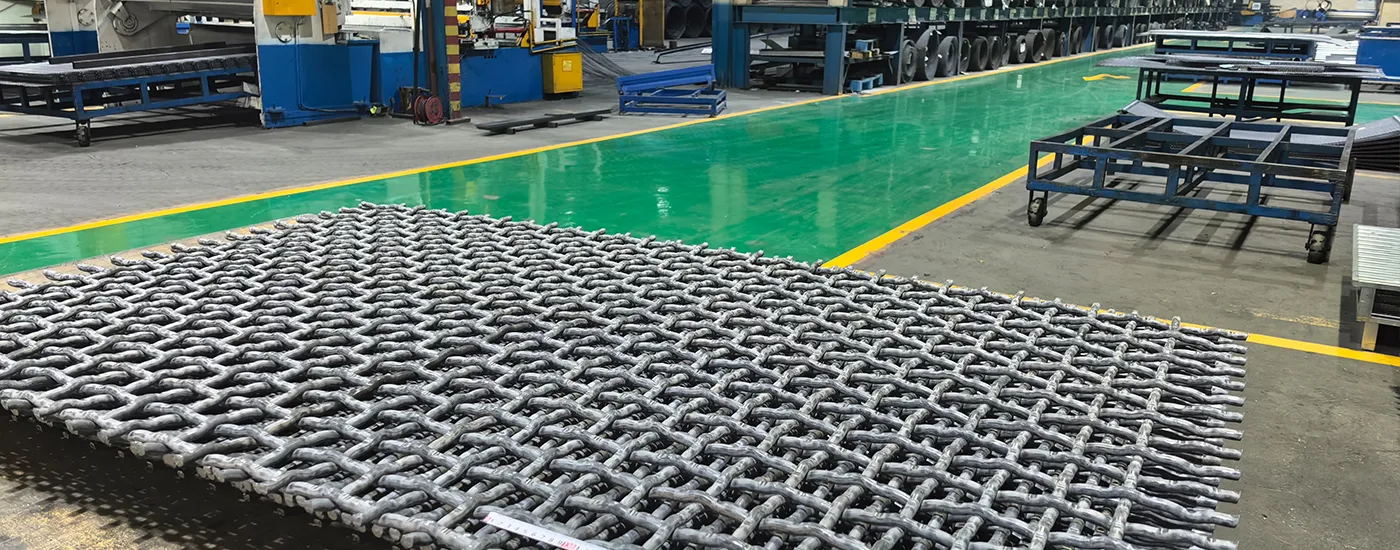

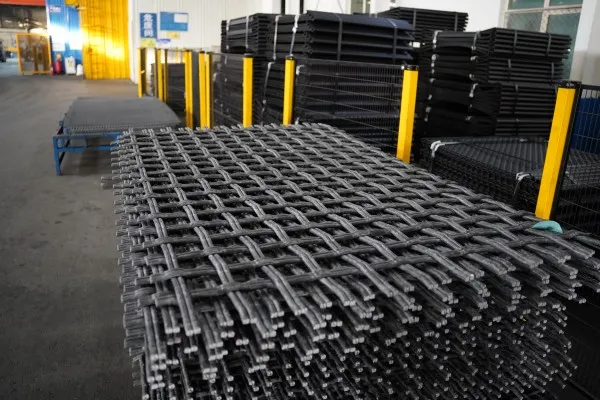

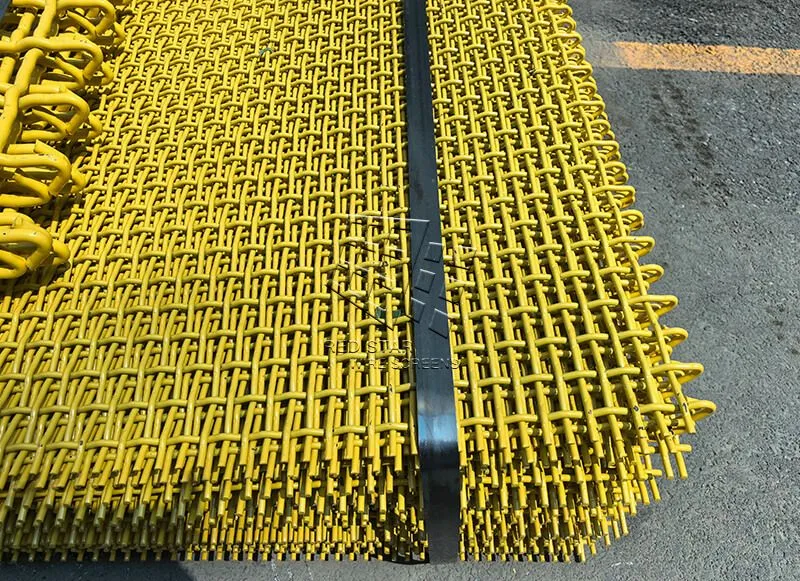

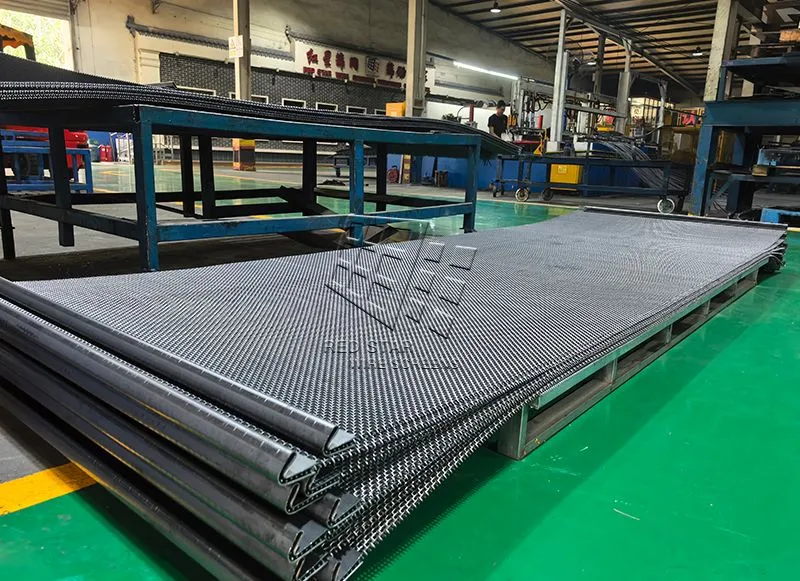

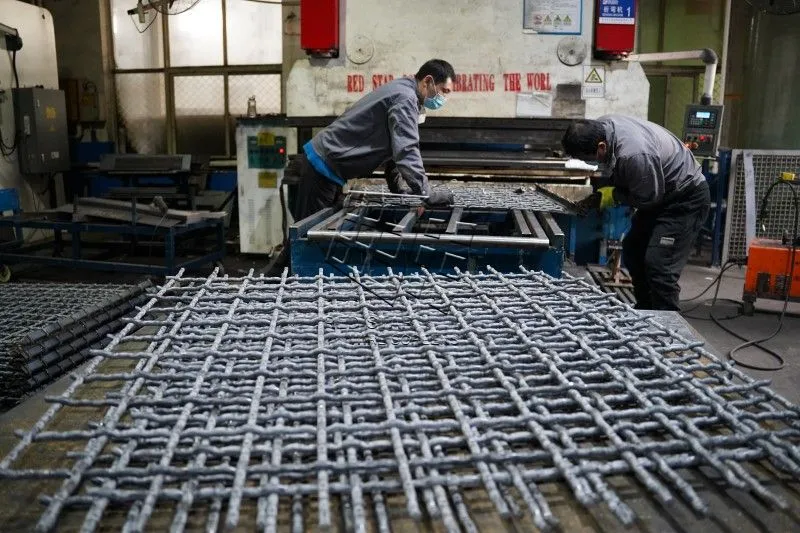

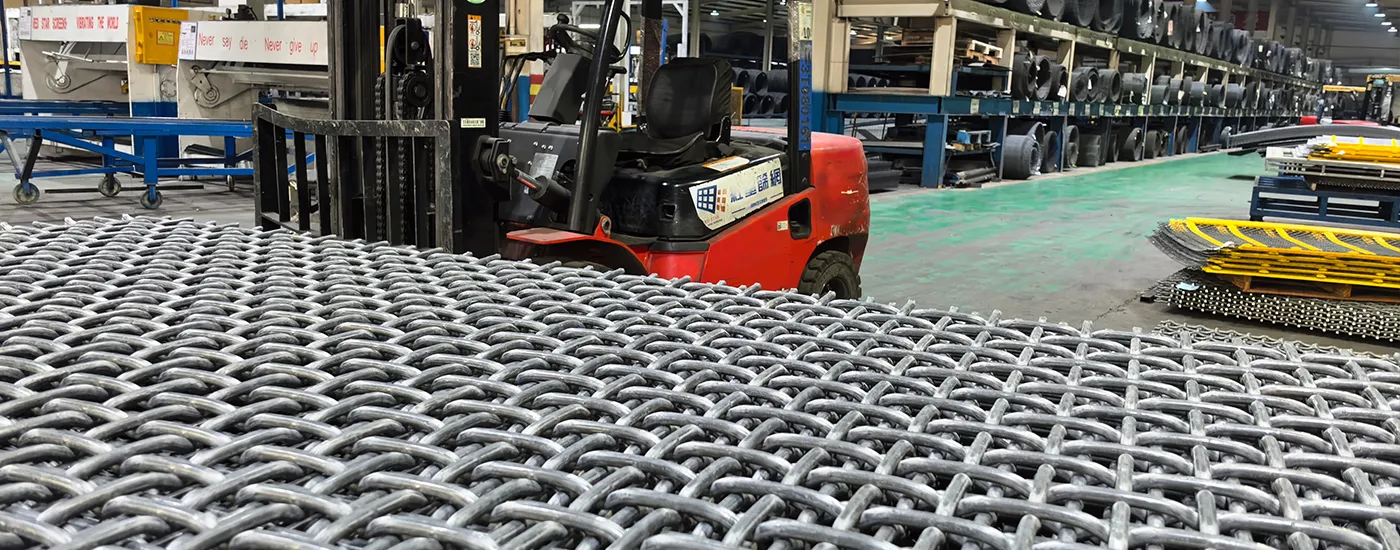

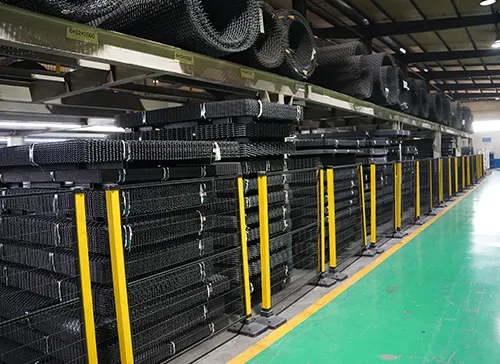

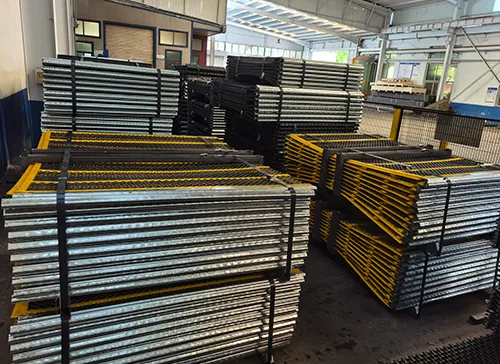

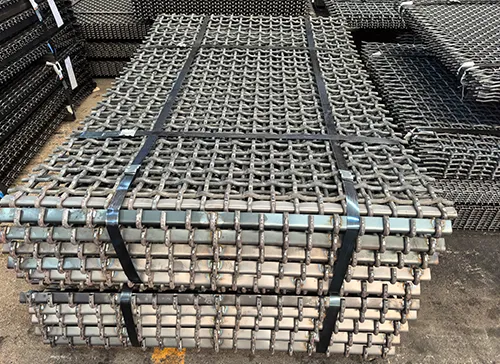

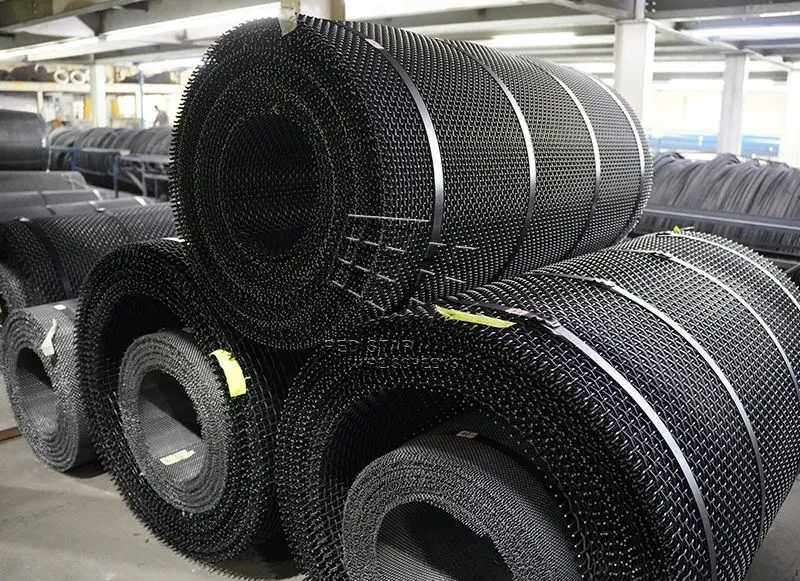

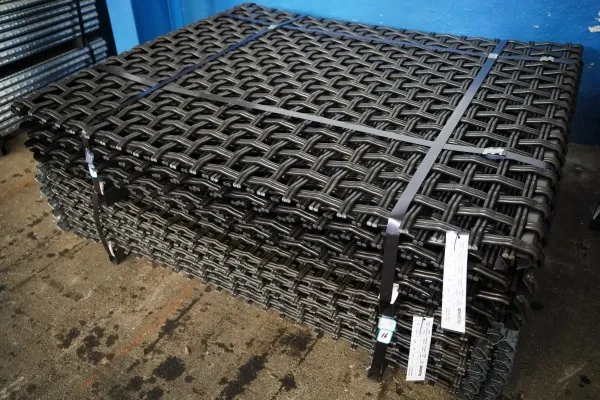

Factory Display
Factory Display
Factory Display
Factory Display
Factory Display
Factory Display
Factory Display
Factory Display
Factory Address:
1 Hongxing Rd, Anping County, Hengshui, Hebei, China
Email:
[email protected]
WhatsApp :
+86 13253247773
Phone:
+86 13253247773
:
Working Hours:
Monday – Friday: 8:00 AM – 5:00 PM (GMT+8). We reply to all inquiries within 12–24 hours, regardless of time zone.
